How to measure volumes and track landscape changes

Written by
Reading time:
min
Data Processing & Custom Development
March 23, 2023

Why Measuring Volumes is Important for Construction and Mining:

  • A site manager must plan excavation work and understand earth balance, i.e. cut and fill activities.
  • Differences in landscapes for two consecutive dates may show a field engineer the current work speed and ability to meet the plan.
  • In the mining industry, a storage area manager needs to know the amount of material and the utilization of different storage zones.

All these tasks have a lot in common. They all require a comparison of digital elevation models (DEM). Typically, you have two DEMs: one is the reference surface and the other is the current surface. The reference surface can be a landscape from some previous moment in time or a 3D design from CAD/BIM software with desired geometry.

There are two types of landscape models:

  • Digital Surface Model (DSM) which represents elevation levels of the highest visible points, like rooftops, trees, cars, and the ground
  • Digital Terrain Model (DTM) which represents ground level without trees, cars, buildings, etc.

Given that said we can build simple equations for different problems:

Problem Solution

Measure Cut and Fill relative to the target plan

Compare current DSM with 3D design

Measure Cut and Fill volumes since the previous moment in time

Compare current DSM with previous DSM

Measure stockpile volume

Compare DSM to DTM in the specified region

Check stockpile storage zone utilization (find free and occupied spaces)

Compare DSM to DTM and measure areas with various difference in elevation between DSM and DTM



How to get DSM and DTM

DSM can be a result of photogrammetry or LIDAR survey. Most popular approach is to fly a drone with a photo camera or a LIDAR using the regular pattern, similar to the picture below

More information about the specifics of flight planning can be found in these two articles:

Depending on the sensor type, DSM can be generated using the following techniques:

Images LIDAR Point cloud
Process images in specialized photogrammetry software: Pix4D Mapper, Agisoft Metashape, Bentley Context Capture. Result will be a GeoTiff with DSM and GeoTiff with orthomosaics. Process LAS file in LIDAR360 software. As a result software generates DSM and DTM.
Check pricing in SPH's shop



If you have only DSM, there is a way how you can make a reference DTM surface for further comparison operations.

In ATLAS there is a tool which allows users to draw perimeter and interpolate elevation inside it using altitudes on perimeter vertices.

ATLAS is a cloud based GIS for drone users. It allows to store, visualize, measure, compare, annotate and share spatial data, such as: orthomosaics, DEM, point cloud, 2D/3D design.

Volume measurement

ATLAS has a rich set of tools for volume measurements. Essentially, volume measurement always consists of the following steps:

  1. Draw a polygonal area of interest on the map.
  2. Select the current DSM.
  3. Select the reference level/surface.
  4. Calculate the volume as four values: cut, fill, net, total.

ATLAS supports four types of reference surfaces:

Measurement type Reference surface types
Elevation over the perimeter The software automatically calculates DTM by using elevations of the vertices of the polygonal area of interest. DTM becomes the reference surface. This is useful for measuring volumes of stockpiles that are stored on relatively flat surfaces.
3D design 3D design in DXF format from BIM/CAD can be uploaded to the software and used as a reference surface. This is useful when one needs to compare the current landscape against target levels.
Another DSM A DSM from another survey in the project can be used as a reference surface. This is useful for understanding changes in the landscape.
Absolute level (AMSL) The software can use a surface that is parallel to sea level and has an altitude defined by a user. This is useful for understanding areas affected by floods.



There are 4 values characterizing volume measurement:

  • CUT - amount of “earth” required to be removed to reach the reference surface level
  • FILL - amount of “earth” required to be brought to the site to reach the reference surface level
  • NET - shows “earth” balance for the site. Calculated as FILL - CUT
  • TOTAL - shows total amount of “earth” to be moved, both removed and brought. Calculated as FILL + CUT

It is very important to visualize the difference between the current landscape(DSM) and a reference surface. To do that ATLAS allows to specify ranges of elevation differences and respective colors.

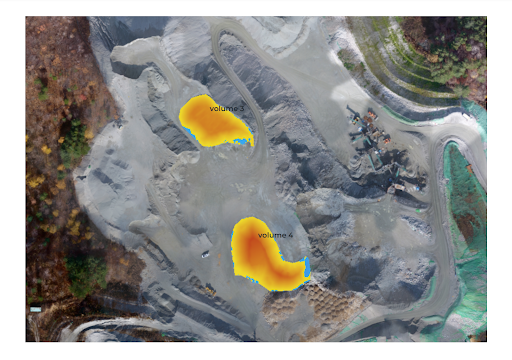

Several examples of heatmaps

Example 1.
Changes in DSM of the construction site for 2 different dates

Example 2.
Comparison of current DSM against possible flood level (absolute AMSL)

Example 3.
Comparison of DSM against 3D design

Reporting

Most of the clients need a report in PDF format which contains information about the site in general and more details for specific areas of interest. Report can be exported directly from the Measurements context menu. All selected(visible on the map) volumes are included.

Report consists of several sections.

General site view

Spreadsheet with all selected areas of interest and their Cut&Fill values

Each area of interest has a dedicated page with a screenshot, Cut&Fill values and legend with zones of differences in elevation. Each zone has a color and the area size covered. Area size can be used, for example, to analyze the utilization of stockpile storage areas. By properly configuring elevation difference ranges we can split areas into zones which should be considered as free and occupied. For example all differences of elevation between DSM and DTM less than 1.5 meters can be considered as free. All zones with a greater difference can be considered as occupied.

Conclusion

Landscape change detection and volume measurement is a crucial part of the construction and mining earthwork management process. If you need help in setting up a workflow for your GIS or drone department, contact us!
